Dual Tank — Well Water

Hardware: Dual-tank well — softener + Katalox Light (with coconut-shell carbon layer), two ProValves

A well-focused dual-tank equipment setup for hardness plus common well issues like iron staining and sulfur odor — sized after reviewing your water, not from a one-size chart.

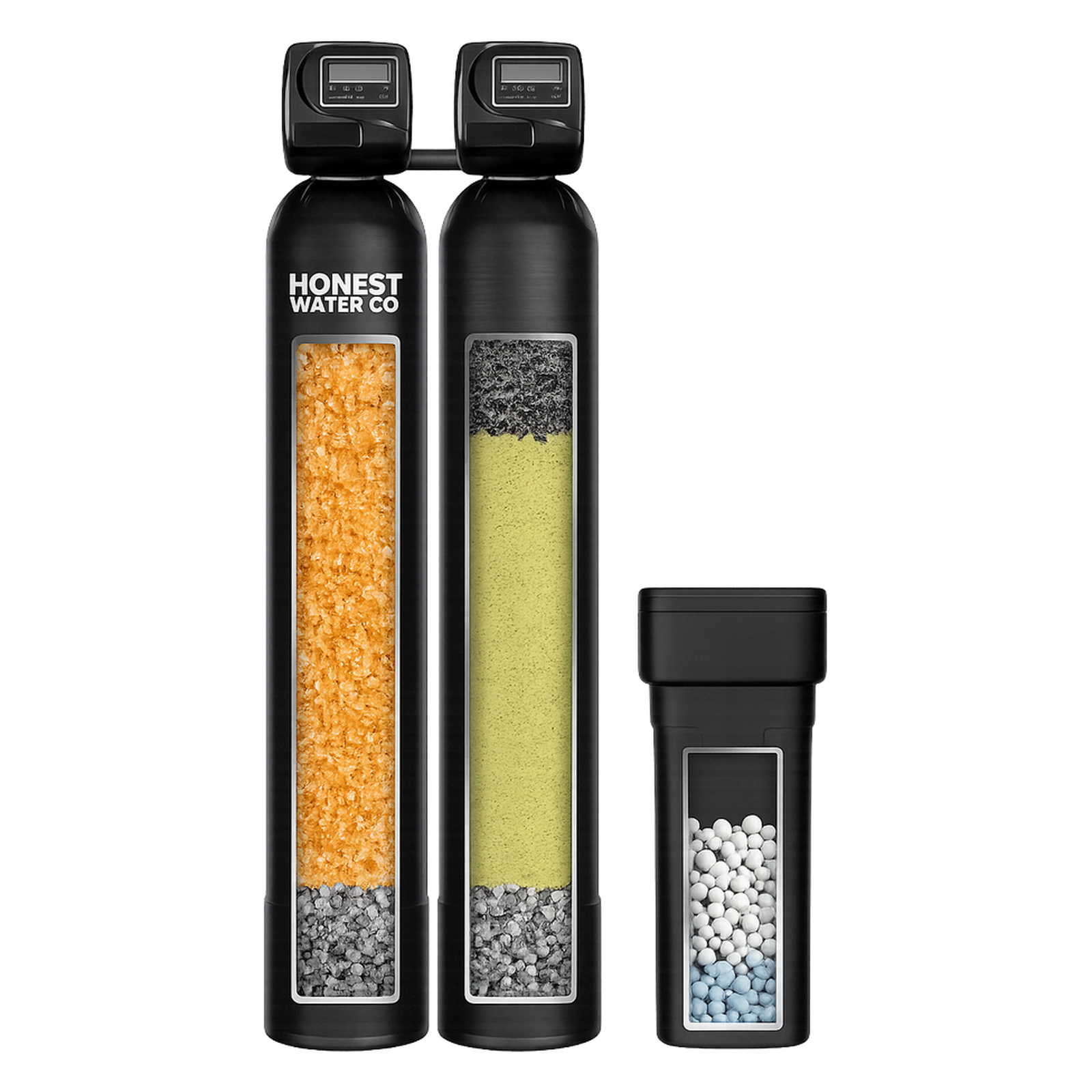

Dual-tank well water treatment system

Overview

Private wells are a different problem from city or rural-district water. This configuration pairs a softening tank with a Katalox Light tank (plus a coconut-shell carbon layer) aimed at iron, manganese, and hydrogen sulfide — the usual drivers of orange staining, metallic taste, and rotten-egg smell. Two ProValves (one per tank) give each stage independent control. Every well is different, so we size this system after reviewing your water.

Highlights

  • Softener tank + Katalox Light tank (with carbon layer)
  • Two ProValves — independent control per tank
  • Targets hardness plus iron / manganese / hydrogen sulfide concerns
  • Sized after reviewing your water — not a generic city package

Features

  • Staged well treatment rather than a single mixed city bed
  • Independent regeneration / backwash control per tank
  • 1" full-flow bypass included
  • Discuss UV or sediment prefiltration when a water test calls for it

Request a quote for this system

Specifications

ConfigurationSoftening tank + Katalox Light tank + brine tank
Control valvesTwo — one per tank
Second-tank mediaKatalox Light with coconut-shell carbon layer
TargetsIron, manganese, hydrogen sulfide, hardness
Valve flow rate28 GPM
Brine / salt tank15" × 35" square
Bypass1" full-flow, included
Operating pressure30–125 PSI
Water temperature40°–110°F
Electrical120V / 60Hz · 12V transformers for valves

Components & sourcing

Component brands and certifications are those of their respective manufacturers. Specs reflect the manufacturer equipment Jackrabbit sells.

Control valvesTwo ProValves — Hankscraft ceramic-disc, Wisconsin
Mineral tanksEnpress fiberglass pressure tanks — Ohio
Softening resinResinTech CG10 strong-acid cation, 10% crosslink — WQA Gold Seal
Well mediaKatalox Light with coconut-shell carbon layer
Support beddingNSF-certified polishing gravel

Certifications: NSF/ANSI 44 · NSF/ANSI 42 · NSF/ANSI 61 · WQA Gold Seal resin

What’s included

  • Softening mineral tank with resin bed
  • Katalox Light mineral tank (with carbon layer)
  • Two ProValve control heads
  • Brine / salt tank
  • 1" full-flow bypass valve

Equipment warranty

Component / ProductWarranty Period
Media TanksLifetime
Storage TanksLifetime
Ceramic Discs (Rotary Valves)Lifetime
System Dry Parts (mechanical and non-consumable parts that do not contact water)Lifetime
Control Valves5 Years
Filtration Media5 Years

Full warranty details →
