Whole Home SystemsStandard Softener + Filtration

City & rural-district water · 48,000 grains

Standard Whole-Home Softener + Filtration

Hardware: Standard whole-home softener + filtration (48,000 grain mixed bed)

Soft water and chlorine taste/odor reduction in one tank — a practical fit for many 3–4 bedroom homes on municipal or rural-district water around Wichita, Andover, Derby, and Goddard.

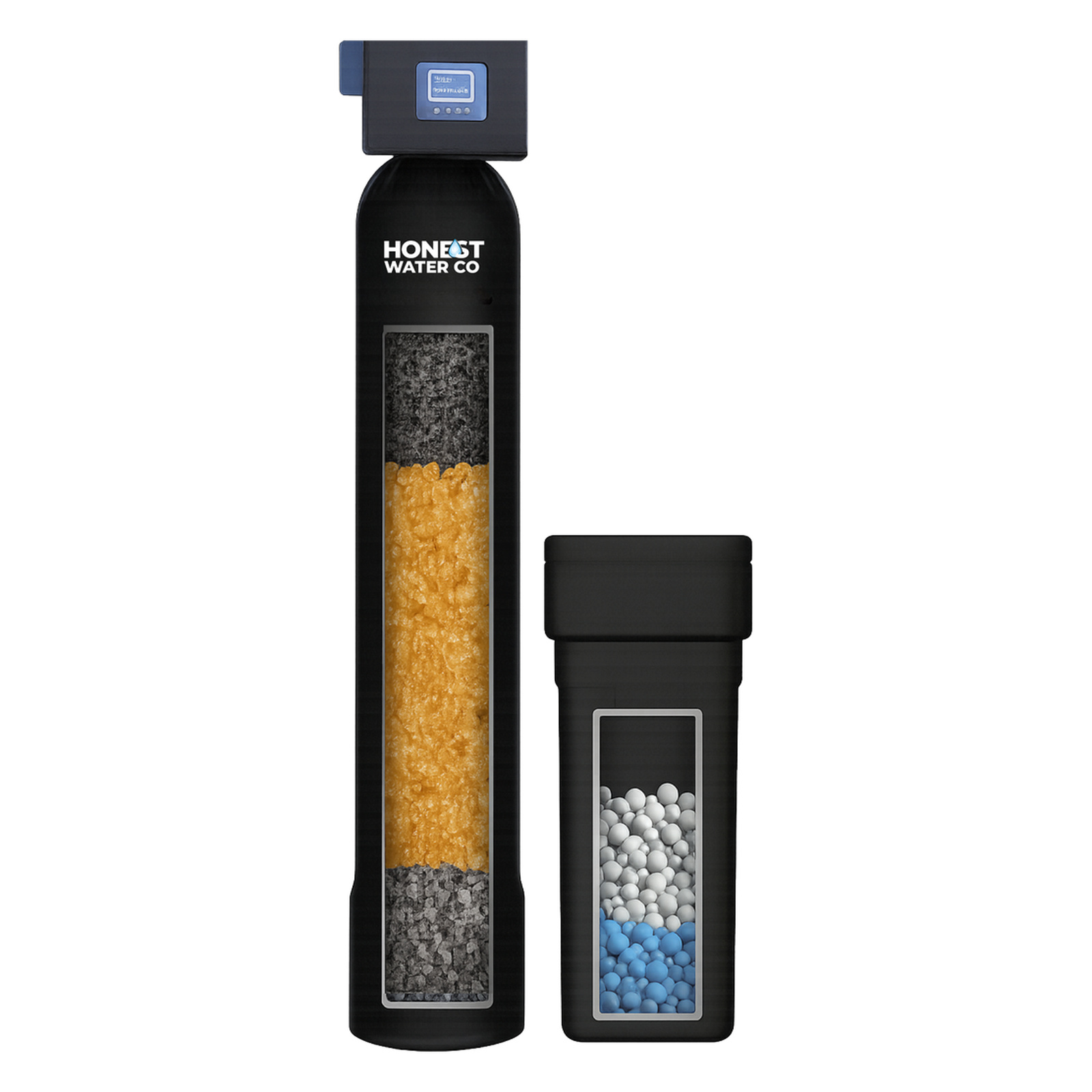

Standard whole-home softener and filtration tanks

Overview

A single-tank point-of-entry system that softens hardness minerals and reduces common chlorine taste and odor. Softening capacity is 48,000 grains. The bed combines ResinTech CG10 cation resin with Jacobi coconut-shell carbon so hardness and chlorine are handled in one vessel on a ProValve. Built for Wichita-area city and rural-district water — not a well-iron package.

Highlights

  • 48,000-grain softening capacity
  • Combined softening resin and coconut-shell carbon in one 10" × 54" tank
  • ProValve ceramic-disc control with demand-initiated regeneration
  • Helps with scale on fixtures and soap that will not lather well

Features

  • Upflow counter-current, demand-initiated regeneration
  • 1" full-flow bypass included
  • 1.25" high-flow distributor tube
  • Carbon stage targets chlorine/chloramine taste and odor compounds

Request a quote for this system

Specifications

Softening capacity48,000 grains
Media tank (D × H)10" × 54"
Media volume1.5 cu ft resin + carbon
Valve flow rate28 GPM
Service flow rate~27 GPM (at ~15 PSI drop)
Backwash flow~3.0 GPM
Brine / salt tank15" × 35" square
Bypass1" full-flow, included
Port connections1" NPT elbows
Operating pressure30–125 PSI
Water temperature40°–110°F
Electrical120V / 60Hz · 12V transformer for valve
Typical fitUp to about 3 baths / mid-size homes

Components & sourcing

Component brands and certifications are those of their respective manufacturers. Specs reflect the manufacturer equipment Jackrabbit sells.

Control valveProValve — Hankscraft ceramic-disc valve, assembled in Wisconsin, with memory backup
Mineral tankEnpress fiberglass pressure tank — made in Ohio
Softening resinResinTech CG10 strong-acid cation resin, 10% crosslink — New Jersey; WQA Gold Seal
Carbon mediaJacobi granular activated coconut-shell carbon
Support beddingNSF-certified polishing gravel

Certifications: NSF/ANSI 44 · NSF/ANSI 42 · NSF/ANSI 61 · WQA Gold Seal resin

What’s included

  • Mineral tank(s) with specified media bed
  • ProValve control head
  • Brine / salt tank (salt-based systems)
  • 1" full-flow bypass valve
  • 1" NPT port connections

Equipment warranty

Component / ProductWarranty Period
Media TanksLifetime
Storage TanksLifetime
Ceramic Discs (Rotary Valves)Lifetime
System Dry Parts (mechanical and non-consumable parts that do not contact water)Lifetime
Control Valves5 Years
Filtration Media5 Years

Full warranty details →

Maintenance realities

Keep salt in the brine tank. The valve meters usage and regenerates as needed. Media and valve service follow manufacturer intervals — ask at startup.
